Blue Ridge Manufacturing

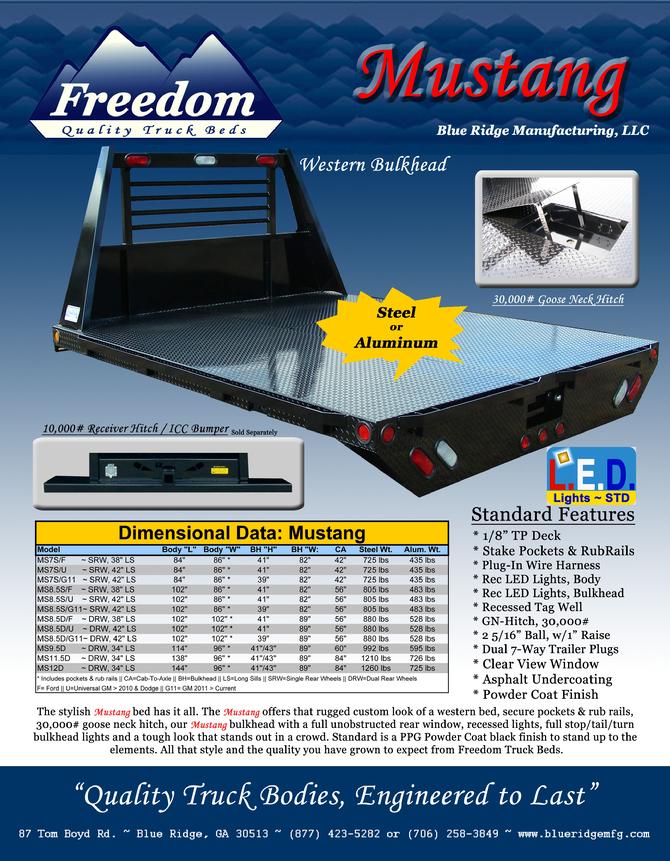

Click photo for close-up view. Recessed Fuel Filler Recessed Tag Well Single Wheel Bulkhead GN Trap Door Closed GN Trap Door Moving GN Trap Door Open Specifications Mustang Truck Bed, 8.5' ~ 9.5' ~ 11.5' ~ 12' {MS9.5D} HD 1/8" TP Steel Floor (92" Wide DW & 82" Wide SW) Outside Rub Rails & Stake Pockets, sides and rear (Adds 4" to body width) Gooseneck hitch compartment w/trap door and ball mounting plate, 1 1/2" hole Gas Fill cut outs, semi-blanked Ford, Chevy Dodge Tapered bulkhead with full width slotted window Bulkhead lights, 2 Stop/Tail/Turn, & center mounted back-up lamp TP Tail Skirt w/ recessed tag compartment & STT lights 3" formed cross sills on 16" centers (avg) 4" structural channel long rails Bulkhead reinforced to long sills Reinforced wheel well compartments Adjustable universal bolt on mud flap brackets Asphalt Undercoating FMVSS-108 lighting compliant Modular wire harness w/ recesses shock mounted sealed lamps Shot blasted, Iron Phosphate & steam pre-treatment High Gloss PPG Black Powder Coat Finish Complete mounting hardware kit w/ shear plates included Download Directory Mustang Literature     Underbody Box Quick Mount Locations Website powered by Network Solutions®

"Quality Truck Bodies, Engineered to Last"
